PLAXIS Monopile Designer

Offshore Foundation Design Software

Reduce costs and optimize Designs

Trim design and analysis time by using the right software for the project.
Use engineered earth structures, construction, topology, borehole, and water data.

What is PLAXIS Monopile Designer?

PLAXIS Monopile Designer is a finite element software for monopile foundations. It transfers the results of the PISA Joint Industry Research Project to daily engineering practice. PLAXIS Monopile Designer reduces the amount of steel each monopile requires and therefore reduces overall costs for any wind farm. It can be used as a stand-alone tool or in connection with PLAXIS 3D.

Reduce Costs

Significantly optimize the designs for your monopile foundation project. This will reduce overall steel, fabrication, transportation, and installation costs. You could reduce the embedded length of piles by up to 35%.

Improve Accuracy

Use the most advanced and innovative method for designing monopiles – Pile Soil Analysis (PISA). This method is the industry’s best practice for developing future generation offshore wind farms.

Simplify Workflows

Use PLAXIS Monopile Designer along with PLAXIS 3D to easily automate the process of generating and calculating 3D models. Derive, normalize, and parameterize soil reaction curves to calibrate your 1D model.

Analyze Layered Soils

Combine multiple sets of soil reaction curves, either rule-based or numerically calibrated from homogeneous soil profiles, to conduct 1D analyses of monopiles in layered soil in accordance to the findings of PISA Phase 2.

Validate Designs

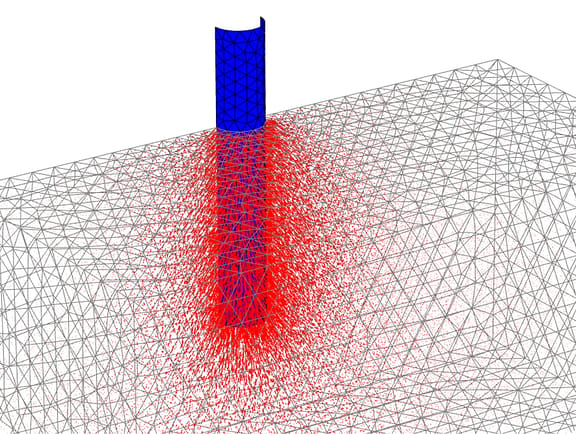

Automate the generation and calculation of a PLAXIS 3D FEM model to verify the final monopile geometry and validate the 1D design approach. Generate design verification models for homogenous and layered profiles.

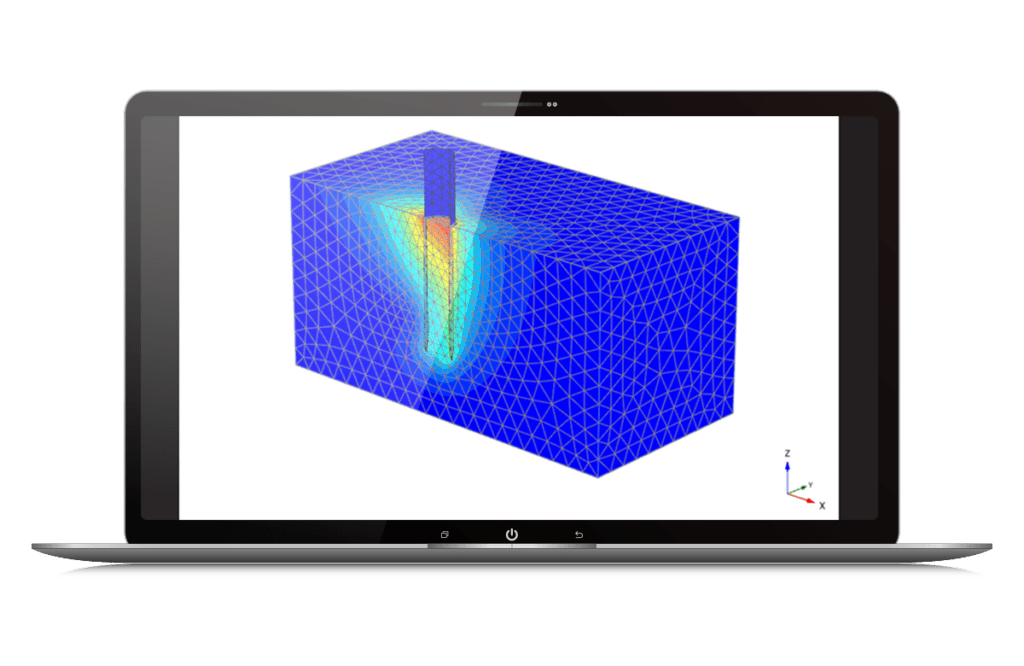

PLAXIS Monopile Designer Screenshot

PLAXIS Monopile Designer

  • Design offshore monopile foundations cost-effectively
  • Transfer results of PISA to your design
  • Calibrate soil reaction curves

*Prices vary per region. For more options, see licensing and subscriptions section.

User Quote

“We were able to quickly develop the conceptual 3D model using topographic data, borehole logs, and 2D geologic cross-sections. Once the conceptual model was built, we were able to analyze potential failure locations in excellent time. We highly recommend this software for analyzing similar projects.”

— Scott T. Anderson, Sr. Geotechnical Engineer, HDR Engineering

FEATURED USER STORIES

PLAXIS Software Resources

Frequently Asked Questions

PLAXIS Monopile Designer offers an enhanced design method that dramatically reduces the amount of steel needed for monopile foundations, lowering the overall costs of wind farms. It allows the transfer of results of the PISA Joint Industry Research Project into daily engineering practices.

Use PLAXIS Monopile Designer as a stand-alone tool for rule-based design method or in connection with PLAXIS 3D for numerical-based design method.

PLAXIS Monopile Designer—developed in collaboration with Oxford University and Fugro—brings state-of-the-art research to engineering practices. The software transfers the enhanced design method established in PISA Phase 1 and 2 to current design practices. And it will enable the capitalization of any future findings of PISA, which will be implemented into the software as they become available.

For decades, the PLAXIS engineering process has consistently delivered stable, robust, and well-defined geotechnical finite element software. PLAXIS Monopile Designer follows this proven process and has been validated via large-scale testing of monopile foundations at the two PISA test sites, the Dunkirk sand site and the Cowden clay site.

If you want to receive tailored training or attend a PLAXIS Monopile Designer course that is specific to your project requirement, Bentley offers extra training and mentoring services. You can choose from tailor-made training, on-demand learning, consulting services, mentoring and more. Learn more about Expert Services here.

The price of PLAXIS Monopile Designer varies per region. While there are various types of licensing available, a common choice is the 12-month practitioner license offered through Bentley’s eStore. When you purchase through the eStore, you get a Virtuoso Subscription which means you get both the software and the training, expert services, and custom mentoring you need to get started quickly.
