    RAM Elements

    Your go-to structural design workhorse

3D Structural Analysis and Design Software

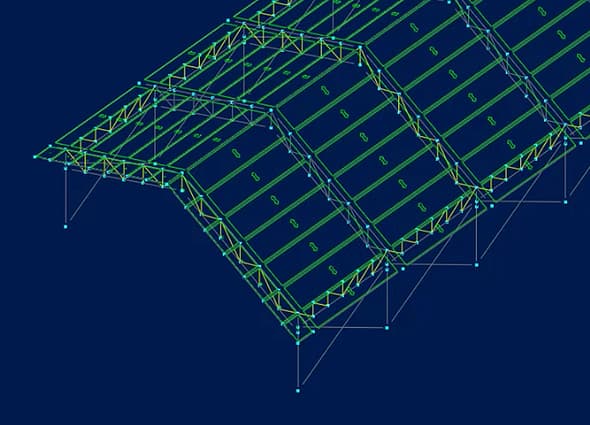

Perform analysis and design – including quickly performing 3D finite element analysis – of almost any type of structure or structural component, all in one affordable application. You will save time and money by performing your daily design tasks for all of your building projects, simple or complex, all within a single easy-to-learn and use application. Complete your steel, concrete, cold-formed steel, timber, and masonry projects, regardless of complexity, on time and on budget. Maximize your software investment by using RAM Frame’s simple graphic interface to quickly design trusses, continuous beams, and frames of all types. Quickly complete many other design tasks such as designing retaining walls, masonry walls, tilt-up walls, shear walls, or footings.
    • Analyze gravity and lateral load
    • Check designs for cold-formed sections
    • Comply with seismic requirements
    • Create finite element meshes
    • Design and analyze structural models
    • Design lateral resisting frames
    • Design to international design standards
    • Generate design loads and load combinations
    • Model structural steel
    • Produce structural concrete details
    • Share structural models
    • Utilize international section profiles
Capabilities
  • Analyze gravity and lateral load

    • Design and analyze simple or complex structures for a wide range of loading conditions, including those induced by gravity such as dead and live loads, including skip conditions, in combination with lateral loads including wind and seismic.
  • Check designs for cold-formed sections

    • Design light gauge steel members using a comprehensive cold-formed sections library without needing to use a separate special-purpose application.
  • Comply with seismic requirements

    • Design and detail seismic force-resisting systems, generating seismic loads according to the relevant building code. Consider these forces in the design of elements and, where applicable, the design of frames and the larger structural system. Enforce the ductility requirements of the selected design code in element proportioning and detailing.
  • Design and analyze with finite elements

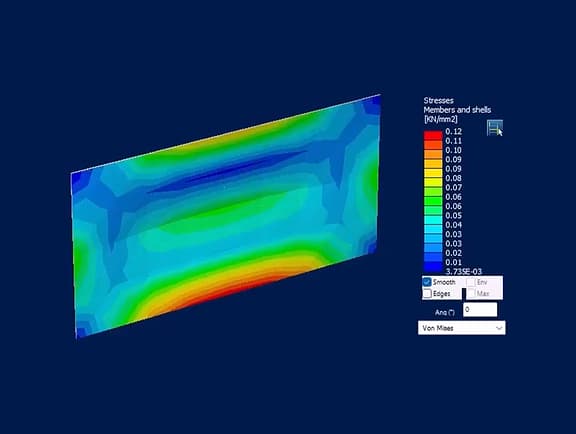

    • Complete building analysis, design, and drafting for the entire structure accurately and efficiently using our state-of-the-art finite element analysis. Reduce or eliminate the time spent waiting for results using our fast solvers.
  • Design and analyze structural models

    • Quickly model your entire structure, including decks, slabs, slab edges and openings, beams, columns, walls, braces, spread and continuous footings, and pile caps. Efficiently automate many of your time-consuming design and analysis tasks and produce practical system and component designs that are document ready.
  • Design beams, columns and walls

    • Optimize or analyze beams, columns, and walls for gravity and lateral loads to quickly obtain safe and economical designs. Confidently produce designs in compliance with U.S. requirements and many international design specifications and building codes.
  • Design lateral resisting frames

    • Perform extensive building-code checks for seismic and wind forces on braced frames and moment frames. Quickly obtain safe and reliable designs for all of your structural projects.
  • Design to international design standards

    • Extend the reach of your business practice and take advantage of global design opportunities by using a wide range of international standards and specifications in our design products. Complete your designs with confidence thanks to extensive support of U.S. and international standards.
  • Detail and schedule concrete rebar

    • Produce rebar placing drawings, including sections, plans, details, bar bending schedules, material take-offs and beam/column/footing schedules, all based on the 3D model. All schedules and drawings can be customized to adhere to your company’s standards for concrete projects.
  • Generate design loads and load combinations

    • Apply code-prescribed wind and seismic loads to the structure using built-in load generators. Calculate relevant loading parameters automatically based on the structural geometry, mass, and selected building code provisions without the need for separate hand calculations. Combine these lateral load cases with gravity and other types of loads using load combination generators.
  • Model structural steel

    • Model structural steel shapes such as beams, columns, and braces, based on country-specific steel tables or user-defined shapes. Complete your steel design by modeling steel connections, either standard or custom, and automatically adjust based on the connecting members. Model comprehensive steel plate-work, including gusset plates and chute work.
  • Produce structural concrete details

    • Produce rebar placing drawings, including sections, plans and details from the 3D model. Quickly create details of reinforcing, including automated rebar labels, dimensions, and notes. Customize all drawings to adhere to your company’s standards for all your reinforced concrete projects. Automatically update drawings based on changes to the 3D model.
  • Share structural models

    • Transfer structural model geometry and design results from one application to another and synchronize changes over time. Quickly share the structural model, drawings, and information with the entire team for review.
  • Utilize international section profiles

    • Complete your structural model using a vast array of international section profile databases, which are included at no extra charge. Take advantage of global design opportunities around the world.
