Analysis and design of a complex pile foundation system for a building in STAAD Foundation Advanced.

STAAD Foundation Advanced

Starting at

$2,886.00 USD

Structural foundation analysis and design software

Purchase STAAD Foundation Advanced Free trial

BENEFITS

Design any foundation type with confidence

Perform analysis and design for isolated, combined, pile cap, and mat foundations, with or without piles, all in a single application.

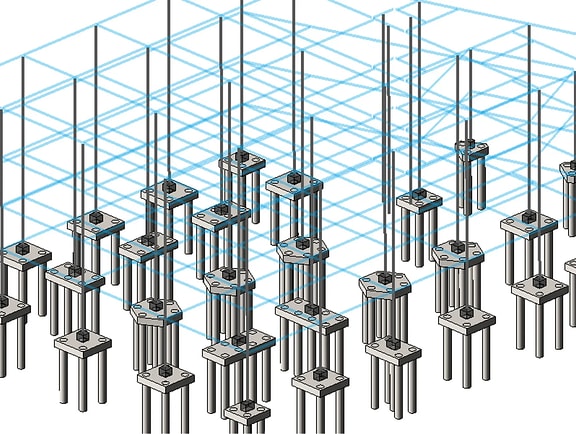

Grid layout of pile caps and deep foundation piles in STAAD Foundation Advanced. A blue wireframe building column grid aligns with concrete pile foundations for structural soil-structure interaction analysis.

  • Multiple foundation types in one environment

    Design isolated, combined, pile cap, and mat foundations within a single foundation design application.

  • Integrate seamlessly with STAAD.Pro

    Import STAAD.Pro models including geometry, section properties, and support reactions to begin foundation design.

  • Generate detailed drawings and reports

    Create plan, elevation, and sectional drawings with rebar marks, plus general arrangement drawings with grid lines to identify interferences.

PRICING OPTIONS

Exclusive pricing options

Find the right professional tier for you

Find the right professional tier for you

STAAD Foundation Advanced

Comprehensive structural foundation analysis and design software.

Starting at

$2,886.00 USD

12-month Virtuoso subscription

Includes 1 license and 1 Key for training or services

  • Analyze and design all common foundation types
  • Perform finite element analysis for complex foundations
  • Generate detailed calculation reports and drawings
  • Optimize foundation systems and reinforcement

Structural WorkSuite

Most popular

Comprehensive bundle of interoperable STAAD and RAM software in a single, cost-effective license.

Starting at

$6,097.00 USD

12-month Virtuoso subscription

Includes 1 license and 3 Keys for training or services

  • Includes STAAD.Pro Advanced, STAAD Foundation Advanced, and RAM Structural System
  • Access to high-powered design and optimization through Bentley’s Analytical Cloud Services
  • Now includes ADINA for premier nonlinear and finite element analysis

More details

Analysis and design

  • Analyze isolated, combined, pile cap, and mat foundations
  • Perform finite element analysis for complex mat foundations
  • Comply with American (ACI) and Indian (IS) design standards
  • Automatically generate load combinations per ASCE and Indian standards

Modeling and integration

  • Import models and results from STAAD.Pro
  • Model complex foundation geometries including openings
  • Automatically generate overburden soil and buoyant loads

Documentation and reporting

  • Generate plan, elevation, and sectional foundation drawings
  • Create general arrangement drawings with grid marks
  • Produce customized, detailed calculation reports
  • Export drawings to DXF or DWG formats
  • Generate bill of quantities for reinforcement

Processor:

  • Intel® Pentium or AMD® processor 3.0 GHz or greater.

Operating System:

  • Windows 11 (64-bit)
  • Windows 10 (64-bit)

Memory:

  • 2 GB recommended. More memory almost always improves performance, particularly when working with larger models. 4 GB or more can help speed up solutions for very large complex models with large numbers of load cases.

Disk Space:

  • 500MB minimum.

Display:

  • A minimum screen resolution of 1280x1024 is required, but higher is recommended.
  • Note: 4k displays are currently not supported.



FAQS

Find answers

Foundation design software is a specialized tool that helps engineers analyze and design a structure's substructure to ensure it safely transfers loads to the ground.

STAAD Foundation Advanced is used for the analysis and design of various foundation types, including isolated, combined, pile cap, and mat foundations.

Foundation design software can be used to design common foundation types such as isolated footings, combined footings, pile caps, and complex mat foundations.

STAAD Foundation Advanced seamlessly integrates by importing analyzed models, geometry, section properties, and support reactions directly from STAAD.Pro to streamline the design workflow.

STAAD Foundation Advanced can generate detailed calculation reports as well as plan, elevation, and sectional drawings complete with rebar marks.
