GeoStudio 3D

GeoStudio 3D is used to analyze slope stability and groundwater conditions in complex 3D ground environments for geotechnical design.

3D geotechnical analysis software is an advanced engineering tool used to simulate and evaluate subsurface conditions in three full spatial dimensions. Unlike 2D software, a 3D platform allows geotechnical engineers to analyze spatial variability, complex geometric shapes, and asymmetrical loading conditions. This true-to-life modeling is essential for designing and assessing deep excavations, complex foundations, open-pit mines, and intricate civil and mining infrastructure where 2D simplification is insufficient.

GeoStudio 3D provides a comprehensive suite of multi-physics modeling tools to solve complex 3D geotechnical problems. Key analysis capabilities include:

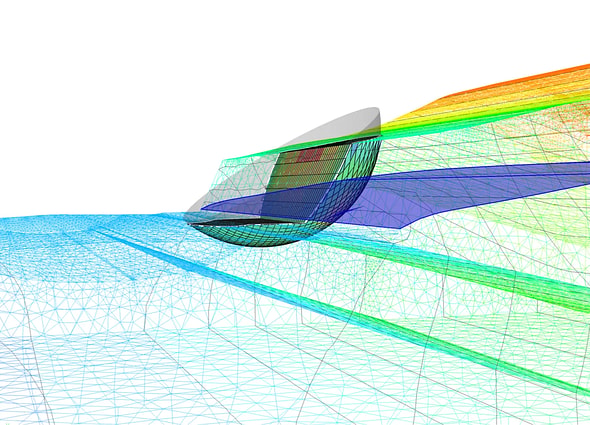

• Slope Stability: Advanced 3D limit equilibrium analysis for capturing true failure mechanisms in complex slopes (SLOPE3D).
• Groundwater seepage: Modeling of 3D steady-state and transient groundwater flow (SEEP3D).

By operating in a unified 3D environment, engineers can confidently tackle projects requiring sophisticated, rigorous geotechnical assessments.

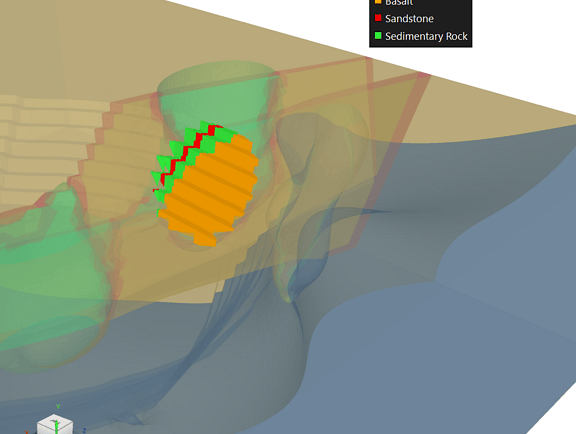

GeoStudio 3D is specifically designed to handle highly complex topography and highly variable stratigraphy. By working in a true 3D space, you can accurately represent irregular surface terrains, intricate geological boundaries, and non-uniform soil layers without oversimplifying critical data. This capability provides a highly realistic representation of the subsurface, reducing uncertainty and minimizing risk in both mining and civil engineering projects.

GeoStudio 3D provides powerful, integrated tools to analyze how groundwater conditions impact overall slope and ground stability. By coupling 3D seepage analysis with 3D stability analysis, engineers can accurately model spatial pore-water pressure distributions and their direct effect on soil shear strength. This multi-physics approach is critical for ensuring the safety of tailings dams, levees, and natural slopes subjected to heavy rainfall or rapid drawdown.

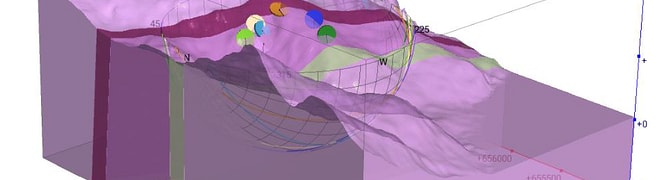

While Leapfrog and GeoStudio 3D do not connect directly on the desktop, they share an integration via Seequent Central. The workflow is highly efficient: the geology team builds and publishes their 3D geological models to Central's shared 3D visualization platform. Geotechnical engineers then connect to this centralized, auditable environment from within GeoStudio 3D to natively import geological model volumes, background meshes, and cross sections. This connected approach eliminates manual rebuilds, bridges the gap between geology and engineering, and dramatically accelerates your 3D geotechnical model creation.

GeoStudio 3D connects natively to Seequent Central, providing a single source of truth for your geological models. By linking directly to this cloud-based heart of a smarter workflow, geotechnical engineers can easily import published 3D geological volumes with complete version control. This ensures that your complex 3D stability and seepage analyses are always built upon the latest, verified geological interpretations while maintaining a fully auditable project history.

GeoStudio 2D evaluates subsurface conditions along a two-dimensional cross-section, making it incredibly fast and ideal for projects with uniform lateral geology, such as long embankments or simple slopes. GeoStudio 3D models geotechnical problems in three full dimensions, which is essential for projects with complex geometries, highly variable stratigraphy, or asymmetrical loading conditions. Because both platforms share the same intuitive interface, users can easily scale from 2D to 3D analysis as project demands evolve.
