Reduce Risk
Reduce risk of failure for offshore structure foundations with nonlinear soil/pile interaction analysis.
WHAT IS SACS Pile Structure Design?
SACS Pile Structure Design is a pile structure interaction design software for nonlinear analysis of soil, pile, and structure interactions to reduce the risk of fatigue on offshore structures.
Automate Workflows
Automated workflows simplify the management of large and complex models, which encourage the team to explore more collapse scenarios. Customizable templates within a common structural model make it easier to manage multiple analyses.
Increase Safety
Assess the capacity of the soil on which you are building to withstand extreme structural loads. Model behavior for axial, lateral, and torsional loads at the pilehead with nonlinear load deflection curves. In seismic zones, account for reduced soil capacity due to liquefaction.
Display Results Graphically
Automatically generate foundation super elements, making it easy to create designs for dynamic analysis. Super elements provide the ability to quickly linearize piled foundations, then model the effect of displacements and rotations with a fully coupled 6×6 matrix for each pile group.
SACS Pile Structure Design
Reduce risk of failure for offshore structure foundations with nonlinear soil/pile interaction analysis.
*Prices vary per region. For more options, see licensing and subscriptions section.
User Quote
“SACS software and its tailor-made enhancements is a very useful tool for structural integrity engineers where a quick workable solution is required in the shortest possible time.”
— Wilson John, Structural Integrity Engineer, Zakum Development Company
FEATURED USER STORIES

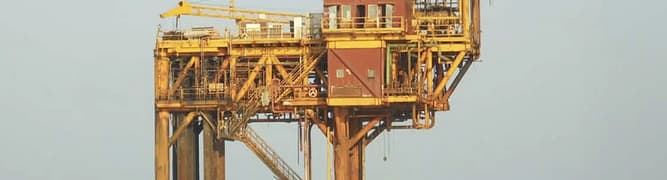

Offshore Oil Operations
3D Reality Modeling for Offshore
The use of Bentley’s integrated technology created a reality mesh of an FPSO platform, saving CNY 1 million.

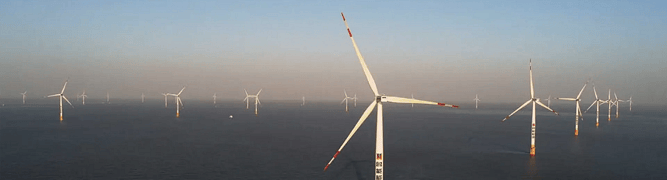

Offshore Wind Farm
3D Construction modeling
Shanghai Investigation, Design, & Research Institute saved big with 3D modeling for the first anti-ice cones.

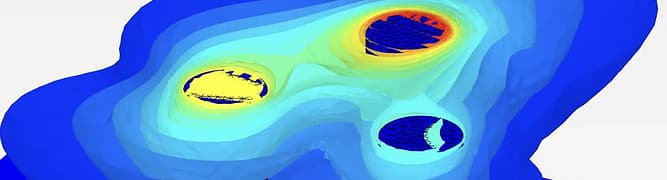

Resilient foundation
Wind Turbine Resists Typhoons
PLAXIS and SACS provided a unified environment to simultaneously create models and test soil interactions.
SACS Software Resources
Frequently Asked Questions
SACS Pile Structure Design helps you accelerate workflows by providing fully coupled analysis. A pile structure interaction design software, SACS Pile Structure Design allows you to perform nonlinear analysis of soil, pile, and structure interactions to reduce the risk of fatigue.
The following Bentley SACS modules can be combined with Offshore Structure Ultimate for comprehensive offshore capabilities: Pile Structure Design, Collapse, Collapse Advanced, Fatigue Advanced – Dynamic Response, Fatigue Advanced – Wave Response, Fatigue Ultimate, Wind.
SACS Pile Structure software tutorials can be found on Bentley Communities, however here are some FREE SACS webinars available in our eStore.
If you want to receive SACS Pile Structure online training or attend a SACS Pile Structure course, Bentley offers extra training and mentoring services. You can choose from tailor-made training, on-demand learning, consulting services, mentoring and more. Learn more about Expert Services here.
The price of SACS Pile Structure varies per region. While there are various types of licensing available, a common choice is the 12-month practitioner license offered through Bentley’s eStore. When you purchase through the eStore you get a Virtuoso Subscription which means you get both the software AND the training, expert services, and custom mentoring you need to get started quickly.
Processor
CPU: Pentium 4 or higher
Operating System
Windows 8/8.1, 10, 11
Memory
RAM: Minimum 2 GB–SACS performance is dependent on model size and resources available
Hard Disk
Minimum 10 GB partition for SACS installation recommended
Display
Graphics card with a chipset that supports Open GL
Network
A network connection is required. 100 Base-T or greater local area ethernet network TCP/IP network protocol is supported
For the most up-to-date system requirements, visit Bentley Communities.
Licensing and Subscription options
Choose What is Right for You
One-year license with training
Virtuoso Subscription – A popular choice for small and medium-sized businesses
Get access to software that comes with training – fast! Bentley’s eStore, Virtuosity, offers a convenient way to lease a 12-month license of Bentley software for a low, upfront cost. Every online purchase through Virtuosity comes as a Virtuoso Subscription that includes training and auto-renewals.
With no contract required, it’s easy to get started quickly..
One-time purchase with support
Perpetual License with SELECT
A perpetual license of Bentley software is a one-time purchase, with a yearly maintenance subscription, called SELECT. This includes 24/7/365 technical support, learning resources, and the ability to exchange licenses for other software once a year. With SELECT, you will benefit from:
- License pooling, so you can access your software from multiple computers.
- Access additional Bentley software with Term Licenses, which allow you to pay for what you use without the upfront cost of purchasing a perpetual license.
Annual renewal quotes are delivered directly to your inbox, and our experienced Renewal Representatives are available to answer your questions and guide you through any changes you’d like to make.
Enterprise Organizations
We’ve got your back
For larger organizations with in-depth requirements, we offer plans to provide global pricing and access to our comprehensive portfolio of solutions and success plan services. Contact us about how to get access to software, global best practices, implementation services, training, and technical support to help your organization realize its full potential while addressing your unique needs.
