Raceway and Cable Management Software

Conquer complexity with unified design

Meet all of your communication, control, and power cabling needs by using Bentley Raceway and Cable Management.

What is Bentley Raceway and Cable Management?

Save time and reduce costs with an integrated application for raceway system layout, cable routing, and material estimating. Design and model complex raceway systems with 3D cable routing in one solution.

  • Remove the complication of multiple applications and provide the complete layout, routing, and material estimating functions in a single, integrated system
  • Create an effective and accurate raceway model, spanning all phases of the design—from initial concept to detailed layout and construction
  • Model cable trays, ladders, and baskets within a building as well as underground systems, such as Trench and Duct Bank
  • Import cable lists, define equipment locations, and perform cable routing
  • Visualize 3D cables in raceway systems to enable more robust design reviews
  • Perform Cable Length and Tray Fill Calculations
  • Computer screen of Bentley Raceway and Cable Management showing plant information from model

    Perform Cable Length and Tray Fill Calculations

    • Find the shortest routes with automatic cable routing, minimizing cable lengths to reduce project costs
    • Calculate cable tray raceway fill and automatically reroute cables to avoid overfilling, saving valuable design time
    • Visualize raceway fill levels with user defined color coding in the 3D model to identify under or overutilized raceway systems

    Read User Story


  • Full Interoperability with OpenPlant Modeler
  • Computer screen of Bentley Raceway and Cable Management showing plant information from model

    Full Interoperability with OpenPlant Modeler

    • Route raceway systems directly within OpenPlant Modeler
    • Exchange data with other Bentley products to eliminate data re-entry, saving valuable time
    • Easily import equipment placed in OpenPlant

Computer screen of Bentley Raceway and Cable Management showing plant information from model

Perform Cable Length and Tray Fill Calculations

  • Find the shortest routes with automatic cable routing, minimizing cable lengths to reduce project costs
  • Calculate cable tray raceway fill and automatically reroute cables to avoid overfilling, saving valuable design time
  • Visualize raceway fill levels with user defined color coding in the 3D model to identify under or overutilized raceway systems

Read User Story



Computer screen of Bentley Raceway and Cable Management showing plant information from model

Full Interoperability with OpenPlant Modeler

  • Route raceway systems directly within OpenPlant Modeler
  • Exchange data with other Bentley products to eliminate data re-entry, saving valuable time
  • Easily import equipment placed in OpenPlant

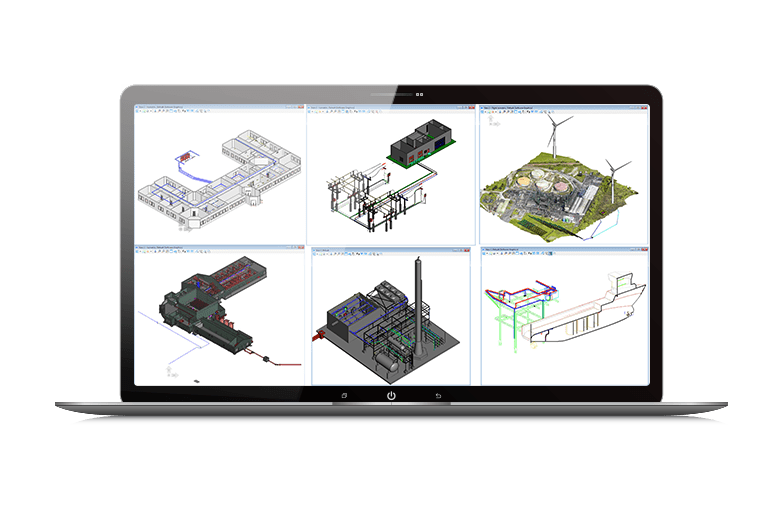

Computer screen of Bentley Raceway and Cable Management showing six different 3D models on one screen

Bentley Raceway and Cable Management

  • Create cable system models
  • Design cable raceways
  • Generate cable and raceway bills of materials
  • Create raceway construction drawings
  • Manage cables
