TOWER

Lattice tower design software

BENEFITS

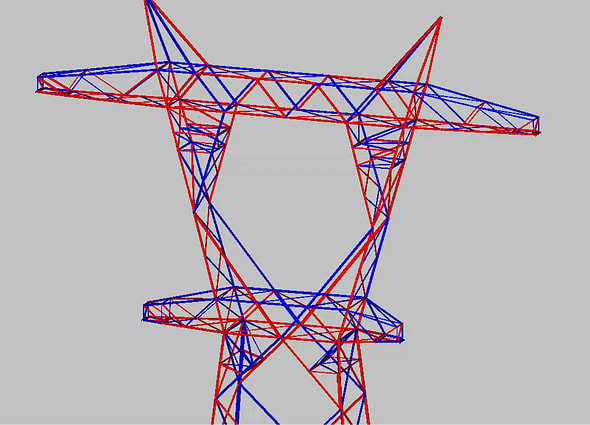

Power line tower design and analysis

TOWER helps teams design and analyze steel lattice towers with structural analysis and code-based engineering workflows.

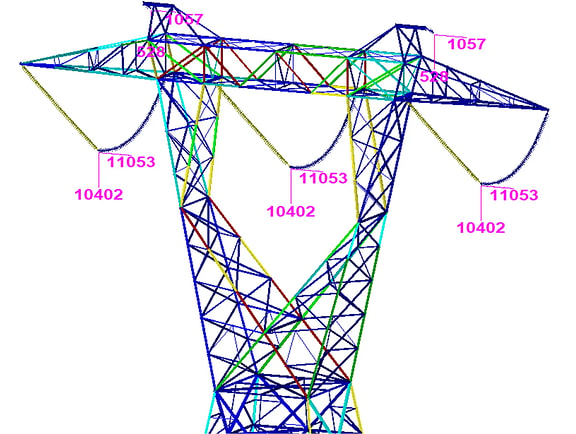

Close-up 3D structural analysis of a lattice transmission tower bridge in TOWER. Highlighted members show color-coded stress ratios under load cases with force vectors and dimensions.

  • One solution for all lattice tower types

    Design and analyze steel lattice towers used in transmission, distribution, substations, and communication infrastructure in one environment.

  • Code-compliant tower structural analysis

    Apply validated finite element methods to ensure lattice tower engineering designs meet industry and global structural standards.

  • Faster, repeatable tower engineering workflows

    Create, manage and analyze tower families with multiple extensions in a single model to accelerate power line tower design.

PRICING OPTIONS

Exclusive pricing options

TOWER

Analysis and design of steel latticed towers

  • Model both self-supporting and guyed towers using a simple and easy to use graphical interface.
  • Validate structural integrity under custom load scenarios and instantly calculate maximum allowable spans. Take advantage of symmetry in both joint and member generation to model structures in just hours.
  • Connect with PLS-CADD to export span data and identify the lowest-cost structure spotting.

More details

Comprehensive structure modeling

  • Model steel lattice towers for transmission, distribution, substation, and communication applications
  • Supports self-supporting and guyed steel lattice tower configurations
  • Detailed tower modeling including angle and round members, bolts, guys, cables, insulators, and equipment components
  • Assemble structures from reusable component libraries to define size, weight, strength, and material properties
  • Leverages tower symmetry to minimize joint and member inputs to accelerate modelling of complex structures



Finite element analysis

  • Perform linear and nonlinear finite element analysis for lattice tower structures
  • Nonlinear analysis captures second-order P-Delta effects and structural instability
  • Accurately models tension only member behavior for realistic load response
  • Model guys, cables, and insulators as true 3D cable elements
  • Advanced tower structural analysis for complex loading scenarios



Code checks and design verification

  • Compare member forces against automatic code-based capacity calculations
  • Identify overstressed members using color-coded graphics and reports
  • Supports allowable wind and weight span and interaction diagrams for use with PLS-CADD line spotting and optimization features
  • Supports ASCE 10, ECCS, CENELEC, AS 3995, IS 802, and other international design codes
  • Performs member and connection capacity checks to meet global standards



Intuitive graphical interface

  • View fully rendered 3D tower models from any direction
  • Edit joints, members, and components directly within the graphical model
  • Visualize utilization levels with color-coded stress results
  • Automatically detects and flags common modeling errors



Interoperability and outputs

  • Export results to text reports, spreadsheets, and XML formats for use with other design tools
  • Save graphical outputs to DXF files compatible with CAD systems
  • Support custom workflows with XML hooks for pre- and post-processing integration
  • Integrate with PLS-CADD for structure spotting and loading workflows
  • Connect your preferred AI agent via MCP proxy server to extend the capabilities of TOWER
  • Perform simple or complex natural language queries of models, create custom reports and images
  • Use AI agent to open, check, modify, and analyse models and return reports

Processor: Intel Core i5 / AMD Ryzen or better with multiple cores recommended

Operating System: Windows 10 or 11 (64 bit)

Memory: 2 GB of RAM (8+ GB for Family Design)

Disk Space: 50 MB minimum

Display: One or preferably two large monitors (24”+) with at least HD resolution recommended

Analyze, check, and automate with AI in TOWER

Accelerate tower analysis and design by connecting GitHub Copilot, Claude, Gemini, and other AI assistants directly to TOWER. Use natural language to analyze structures, validate designs, compare models, generate allowable spans, and create deliverables without scripting or specialized automation expertise.

USER STORIES

Real stories. Real results.

Exo prevents major power outage for Evergy

Using PLS’ digital twin technology, the team stabilized a critical grid tower, preventing a catastrophic and costly power outage for Evergy.

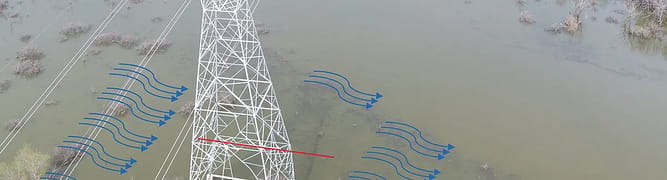

An image illustrating the flood conditions that EXO Grid addressed by retrofitting 44 transmission towers to withstand extreme weather and water loads.

Toth restores power 18 days ahead of schedule

The engineering firm used PLS to quickly develop a line replacement plan, restoring power to 1,500 people for Prairie Power Co-op.

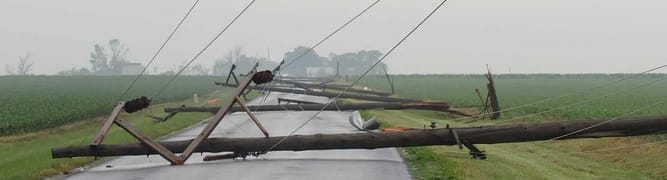

The aftermath of an EF2 tornado, with 11 miles of a 69-kilovolt transmission line destroyed, which Toth redesigned for greater resiliency.

Qualus helps utility reduce unnecessary pole replacements

Qualus cut engineering time by up to 75%, finding $2.5M in potential annual savings by using PLS-CADD for accurate pole analysis.

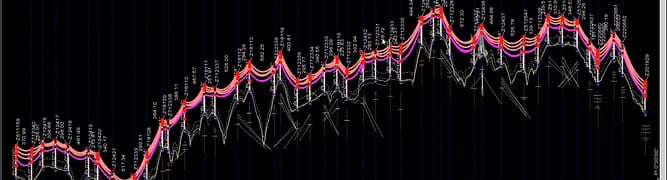

A digital engineering model of a power line, illustrating how Qualus used terrain alignment and span interaction data in PLS-CADD to challenge legacy workflows.

FAQS

Find answers

TOWER is steel lattice tower analysis software used for transmission, distribution, substations, and communication structures.

No. TOWER can be used to model substation gantry and box structures. TOWER can also analyse communication towers under EIA/TIA 222-F and G codes.

TOWER supports code checks for single angles, double angles, cruciform and round cross sections.

TOWER supports most major international lattice tower design codes, including ASCE, ECCS, CENELEC, AS 3995, IS 802 and other design codes for automated member and connection capacity checks.

TOWER uses our proprietary SAPS Finite Element Analysis program to calculate forces and moments in members and connections under user‑defined loading conditions. Nonlinear analysis options help capture second‑order effects, such as P‑Delta behavior, structural instabilities, and behavior of tension-only members.

TOWER can be used as a standalone program or the structure models can be integrated into PLS‑CADD and PLS‑CADD/LITE models for complete overhead line design and automated structural checks.

Yes, TOWER includes powerful structure optimization features including optimization of member sizes and connection bolts for the entire structure or structure families. Optimization of overstressed members and connections is useful for rehabilitation of existing tower designs.
