PlantSight

Create a digital twin

• Capture data from multi-discipline engineering design tools

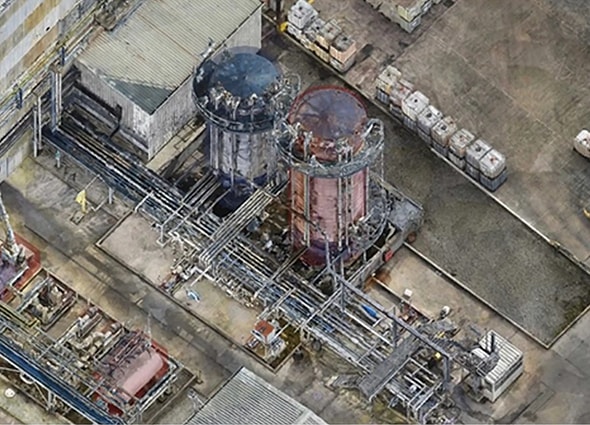

• Create a reality mesh from photogrammetry with iTwin Capture
• Extract key P&ID information using AI and machine learning
• Iimport, label, and create new P&ID symbols

Evolve your digital twin

• Maintain changes with real-time interoperability to OpenPlant
• Maintain 3D designs of your plant piping, HVAC, mechanical, and electrical systems
• Make small changes yourself and in-house without external workcycles
• Utilize an out-of-the-box ISO 15926 compliant schema
• Reuse designs from third-party tools like SmartPlant 3D, E3D, PDMS, PDS, and PlantSpace® Design Series

Data visualization and review

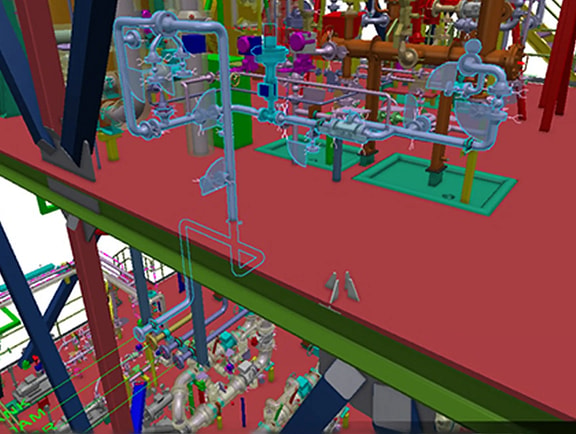

• Review 1D, 2D, and 3D visualization with synchronized views
• Select any component and automatically sync it across all views
• Share models and data for review in a secure cloud portal
• Work from a single source of truth to eliminate data silos

Tag & data management

• Manage tags and data for trustworthy and actionable information
• Track how, when, and by whom the digital twin was changed
• View, create, edit, and generate reports on engineering data in the PlantSight portal with Data Manager

Design review

• Share models, documents, and data with team members and collaborate in a distributed and scalable cloud environment
• Review and access engineering data from anywhere using the cloud native web portal
• Always work from a single source of truth, eliminating duplicates, out of sync data, and information silos

Clash detection

• Perform clash detection remotely and collaboratively
• Increase the accuracy of your plant design across 3D piping, structure, equipment, electrical, and HVAC
• Track and communicate inconsistencies with internal and external project members
• Discover clashes early in the design phase

Version comparison

• Change tracking of complex engineering data
• Models can be from OpenPlant, Aveva, Hexagon, Autodesk and other applications
• Review changes between different states or milestones in the project over time
• Visualize what was added, modified, removed, or left unchanged between versions
• Discover when changes were made, by whom, and what changed in the data

Issue resolution

• Create issues related to changes or assets in the model
• Assign issues to a role or a user
• Add comments, attachments, images, and mark-ups to issues
• Review and track issues using a customizable dashboard
• Track and update all issues collaboratively and remotely
• Cloud-based collaboration
• Leverages iTwin® technology and services to create and maintain digital twin faster
• Secure, scalable, and accessible through a web browser
• Open environment enables seamless collaboration

Data aggregation

• Aggregate models from AVEVA, Hexagon, Autodesk, and other sources
• Federate 3D plant design data and P&IDs into a single view
• Generate insights from 1D, 2D, and 3D data in context

Digital handover

• Continuous information sharing from project to asset
• Foundation for master data management
• Ensure accuracy and reliability of data
• Reduces ramp up time by up to 80%
• Align digital handover workflows with ISO 19650

Processor:

• Intel or AMD 64 bit processor 1.0 GHz or greater

Memory:

• Minimum: 2 GB, Recommended: 8 GB or more

Video:

• Minimum: Intel HD Graphics 520, Recommended: Dedicated graphics card with minimum of 2 GB VRAM or more

Browser compatibility:

• Chrome, Firefox, Safari, Opera, Edge “New Chromium-based version”
