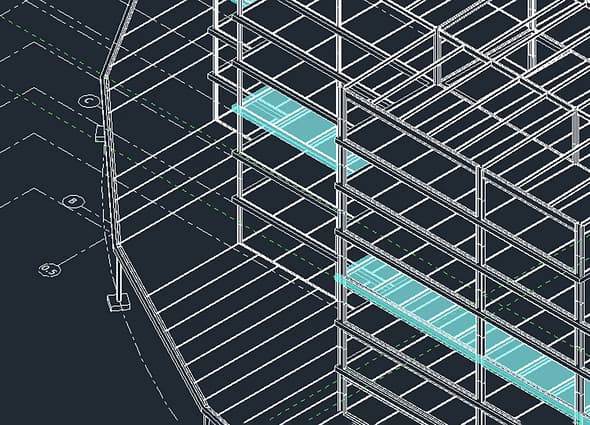

A high-fidelity 3D structural steel framing model of a multi-story building inside ISM Revit Plug-in, featuring highlighted floor decks and grid lines on a dark background.

ISM Revit Plug-in

Free ISM Revit Plug-in for structural model synchronization

Free download (opens in a new tab)

BENEFITS

Synchronize structural workflows

ISM Revit Plug-in helps teams synchronize Revit structural models with Bentley applications without recreating data.

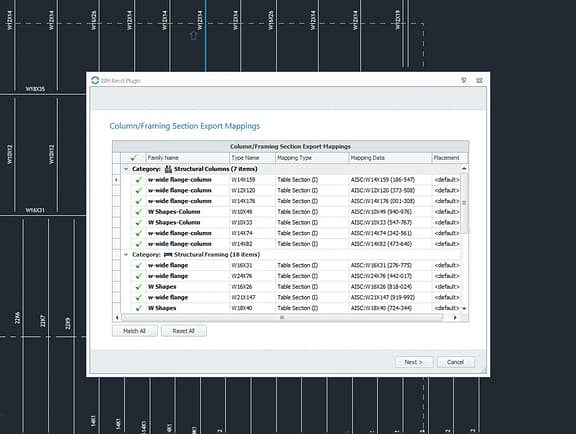

The Column and Framing Section Export Mappings dialog box in ISM Revit Plug-in, demonstrating database mapping of Revit structural columns and framing families to AISC standards.

  • Eliminate structural model recreation

    Transfer structural geometry and design results between Revit and other applications without building the same model multiple times.

  • Keep structural revisions aligned

    Update and track changes to structural models over time so engineering teams can stay coordinate across applications.

  • Improve structural team collaboration

    Support design reviews across teams with integrated 3D applications and BIM platforms connected through shared model workflows.

PRICING OPTIONS

Exclusive pricing options

ISM Revit Plug-in

Synchronize structural models between Revit, STAAD, and RAM without having to recreate data.

Included as part of the iTwin Analytical Synchronizer

  • Transfer structural geometry and design results seamlessly between Revit and other applications
  • Track and manage structural model revisions over time to keep your project team synchronized
  • Participate in iTwin Analytical workflows to ensure reliable interoperability across software
Download

  • Ask us about scalable licensing options and dedicated support.

    Get in touch

  • Free access for students and educators

    Access Bentley software, training, and resources free for academic use.

    Get started with Bentley Education

FAQS

Find answers

The plug-in enables Revit users to participate in iTwin Analytical workflows with applications such as STAAD, RAM, and OpenBuildings Designer. Revit structural models can be imported in any iTwin Analytical Synchronizer enabled application.

No, the plug-in's installer is packaged within iTwin Analytical Synchronizer. No separate download is necessary.

It allows you to participate in iTwin Analytical workflows so you don't waste time creating the same model in multiple applications.

Yes. The ISM Revit Plug-in is installed together with iTwin Analytical Synchronizer directly or with any other application that bundles iTwin Analytical Synchronizer. You do not need to buy ISM Revit Plug-in.

By exporting the already created model in one application you can create once and continue reusing in every compatible application. No remodeling is needed as you can export and import the model any time it is needed elsewhere.
