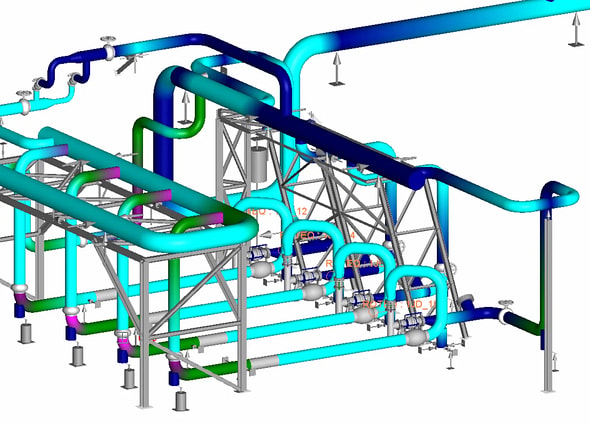

A 3D model of a piping system in AutoPIPE, with stress levels shown in different colors.

AutoPIPE

Starting at

$4,575.00 USD

Advanced pipe stress analysis software

Purchase AutoPIPE Free trial

BENEFITS

AutoPIPE empowers engineers with intelligent pipe stress analysis tools

Combining machine learning, optimization, and 3D CAD integration

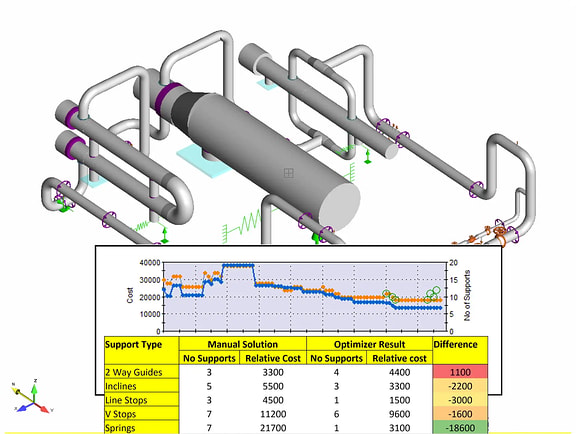

AutoPIPE interface showing cost savings from an optimized pipe support design.

  • Optimize pipe support with AI

    Accelerate pipe stress modeling by instantly evaluating thousands of pipe support configurations using machine learning algorithm.

  • Intuitive user interface

    Object-based GUI, real-time visual feedback, and CAD-style viewport tools make stress analysis fast, visual, and aligned with design intent.

  • Comply with global safety standards

    AutoPIPE meets nuclear, offshore, and ASME/EN code requirements with built-in audits, ensuring code-compliant analysis and reporting.

PRICING OPTIONS

Exclusive pricing options

Find the right professional tier for you

AutoPIPE

Static structural analysis with graphical results and customizable reports that highlight critical issues for fast investigation.

Starting at

$4,575.00 USD

12-month Virtuoso subscription

Includes 1 license and 2 Keys for training or services

  • Create graphical results and reports
  • Streamline multi-discipline workflows
  • Optimize pipe supports

AutoPIPE Advanced

Includes everything from AutoPIPE, plus:

Starting at

$9,914.00 USD

12-month Virtuoso subscription

Includes 1 license and 2 Keys for training or services

  • Advanced analyses with optimizer support for rapid configuration checks
  • Generate stress isometric
  • Expanded design code options

AutoPIPE Nuclear

Includes everything from AutoPIPE Advanced, plus:

  • Nuclear analysis
  • Nuclear codes
  • Fatigue analysis
  • Thermal transient analysis

More details

Modeling

  • Single line, wireframe, and solid render drawing modes
  • CAD style single, double, or quad view ports
  • Vertical axis (Y or Z) can be switched on the fly
  • On-screen distance calculator for accurate coordinate checks
  • Built-in valve actuator for more accurate valve modeling
  • Segment management: reverse, split, join, and re-order segments
  • CAD line class and line numbers
  • Connectivity checker to avoid model disconnects
  • English, metric, SI, and user-defined units
  • Extensive ANSI/ASME, DIN, EN, JIS, GD, GB, GOST, and GRP/FRP standard piping component and material libraries
  • Structural steel modeling using structural databases for 17 countries
  • Expansion joint modeling with tie rod assemblies
  • Model imports
  • Automatic stress isometric generation in DXF, DWG, or DGN formats with engineers mark-ups
  • PIPELINK bi-directional integration with STAAD.Pro and SACS
  • Model geometry data export into AutoPLANT, MicroStation, and AutoCAD
  • Automated ring main wizard
  • Automatic ASCE soil calculator

Dynamic analysis

  • Time history dynamic analysis with ground motion
  • Mode shapes, accelerations, and natural frequencies
  • Harmonic load analysis
  • Uniform and MSRS response spectrum and shock spectra
  • Multiple spectrum enveloping
  • NRC spectra and code case N411 (PVRC) damping and spectra
  • NUREG.CR-1677, CR-6441, and CR-6049 benchmarks
  • Automatic mass discretization
  • Missing mass and ZPA correction
  • Piping Codes
  • ASME B31.1 support for multiple years, including B31.1, B31.4, and B31.8
  • European Standard Metallic Industrial Piping (multiple years) EN13480
  • Multiple years: B31.4, B31.8, B31.4 Offshore, B31.8 Offshore and CSA_Z662 Offshore codes
  • ASME Non-metallic piping codes NM.1 - Thermoplastic Piping and NM.2 - Glass Reinforced Thermosetting-Resin Piping
  • DNV OS F101 offshore code
  • Canadian CAN/CSA–Z662 (multiple years)
  • British Standard BS 806, BS 7159 (GRP piping code)
  • FRP ISO 14692
  • ASME N755 HDPE Code Case
  • Russian SNIP 2.05.06-85 Oil and Gas
  • Swedish Piping Code (SPC) Method 2
  • Norwegian Det Norske Veritas (DNV) and TBK 5-6
  • Dutch Stoomwezen D1101
  • Japanese KHK, MITI class 3, JSME NC1-PPC and General Fire Protection code
  • French RCC-M and SNCT

Analysis

  • ASME B31J calculations for improved SIF values
  • Unlimited static analysis for loads incl. hot modulus for thermal, seismic, wind, dynamic cases
  • Automatic generation of wind profiles per ASCE and UBC guidelines
  • Wave loading and buoyancy for offshore applications
  • Hydrotest analysis with locking spring hangers
  • Linear and non-linear hydrotest analysis
  • Fluid transient utilities for water and steam hammer plus relief valve load analysis
  • Automatic spring hanger sizing from 27 manufacturers
  • State-of-the-art nonlinear support gap, friction, yielding, and soil interaction with advanced features of seismic wave propagation, overburden and settlement loads, and stresses to ASCE, AWWA, and ASME
  • Thermal stratification bowing analysis
  • Seismic static and response spectra load generator to IBC, Euro, ASCE, Indian, Spanish, Mexican, and Chinese standards
  • Ec/Eh ratio applied to expansion stresses for any piping code
  • Integrated flange loading analysis per ASME VIII Div 1 and 2, ASME III App XI, and ANSI B16.5
  • Nozzle flexibility analysis per API 650 App. P, ASME Class 1, WRC 297 and Biljaard methods

Input and results

  • Results saved to Microsoft Access MDB file for post-processing
  • Automatic or user-defined load combinations grid
  • Automated batch processing
  • Maximum intermediate stresses
  • Reference point for manufacturer equipment loading reports
  • Rotating equipment calculations to API 610, NEMA and API 617, and user-defined standards
  • Results can be filtered and sorted by stress, deflection, or load criteria

Processor:

  • 3.0 GHz or greater Intel or AMD processor

Operating System:

  • Windows 10 x64
  • Windows 11 x64

Memory:

  • 8 GB recommended

Disk Space:

  • 4 GB free disk space

Video graphics card:

  • Any industry-standard video card that supports OpenGL 3D graphics

Explore your subscription options and understand how access works before, during, and after purchase.

Learn more »

USER STORIES

Real stories. Real results.

Bentley’s digital ecosystems shortened construction by 20% and cut operational energy consumption by 15%

PT Wijaya delivers the world’s largest refuse-derived fuel facility in Jakarta

3D rendering of the large-scale RDF facility in Bantargebang, designed by PT Wijaya Karya using Bentley software.

50% faster design with Bentley software, enabling smart plant operations

Wanhua Chemical’s seawater desalination project supports a sustainable, low-carbon chemical park and helps ease water scarcity in Penglai, China.

A colorful and detailed 3D digital twin of a chemical plant with complex piping and structures.

Bentley software cut project time by 20%

The Onyear Betel Nut Plant sets a regional benchmark in digital design and environmental responsibility.

Detailed 3D model of an industrial processing unit designed with AutoPIPE.

FAQS

Find answers

Key features include: Genetic Algorithm Support Optimizer, Intuitive Modeling Environment, Comprehensive Analysis Capabilities, Extensive Code Compliance, Results Visualization and Reporting, and Quality Assurance.

AutoPIPE offers advanced analysis capabilities, including buried pipeline analysis, hot clash detection, wave loading, fluid transients, FRP/GRP and plastic pipe analysis, pipe‑structure interaction, fluid and friction effects, jacketed piping, flange analysis, thermal stratification, thermal transients, and seismic methods. It supports linear and nonlinear analysis with rapid setup, evaluation, and visualization of thermal, seismic, wind, and dynamic loads.

The application includes 25 international piping codes. It ensures projects comply with major American (ASME) and European (EN) metallic piping codes. It also includes API, NEMA, ANSI, ASCE, AISC, UBC, ISO, and WRC guidelines and design load limits. AutoPIPE has built-in support for ASME B31J for more accurate flexibilities and Stress Intensification Factors (SIF) for tees. The software is compliant with ASME Section VIII (which governs the construction of pressure vessels), including Division 1 (for pressures above 15 psi) and Division 2 (alternative rules). Other supported codes for pressure vessels include EN13445 (European standard), CODAP (Div 1 & 2) (French code), AD2000 (German code), PD5500 (British standard), and GB (Chinese national standards).

AutoPIPE offers significant integration capabilities with other applications. It provides integrated design between piping and structural analysis through bidirectional integration with STAAD.Pro® and SACS™, automatically transferring pipe support loads and importing structures. Users can import 3D plant design CAD models from numerous Bentley applications (like OpenPlant®, MicroStation®) and third-party applications (such as SmartPlant, Aveva E3D, Autodesk Plant 3D, PDS, AutoCAD, CADWorx, SolidWorks, Inventor, CATIA, PlantFLOW®).

Over 30 international design codes are supported including multiple years of ASME III, B31.1, B31.3, B31.4, B31.8, EN13480, CSA-Z662, ISO14692, DNV F101, ASME B31 J. AutoPIPE is one of the few pipestress analysis programs that adheres to the strictest international quality standards, including ISO 9001, NQA-1, 10CFR50 and approved by NIAC, NUPIC since 1986.

Yes, the software offers an intuitive modeling environment with a unique, object-based graphical user interface (GUI). Users can easily create and modify the pipe stress model using point and click actions, with the model display updating instantly. It also supports undo or redo steps for correcting mistakes, performing what-if analysis, or iterating quickly through design scenarios.

RESOURCES

Your hub for all things AutoPIPE

Build your AutoPIPE expertise with free, on-demand webinars, community forums, technical documentation, and more.
